RPS Core Series 25RPS50 4" Submersible Pump End | Engineered Impeller | 13-31 GPM

You're looking at a pump end that's keeping water flowing across thousands of American farms, ranches, and homesteads.

The RPS Core Series 25RPS50 is a 13-31 GPM submersible water pump end built for everyday reliability in household wells, agricultural operations, irrigation systems, and even industrial use. Rated up to 850 feet of total head and built for continuoius duty, it easily handles the demands that rural water systems require, day in and day out. Pair with a pressure tank - but make sure to size with an RPS Pump Specilaist first (855) 560-5670.

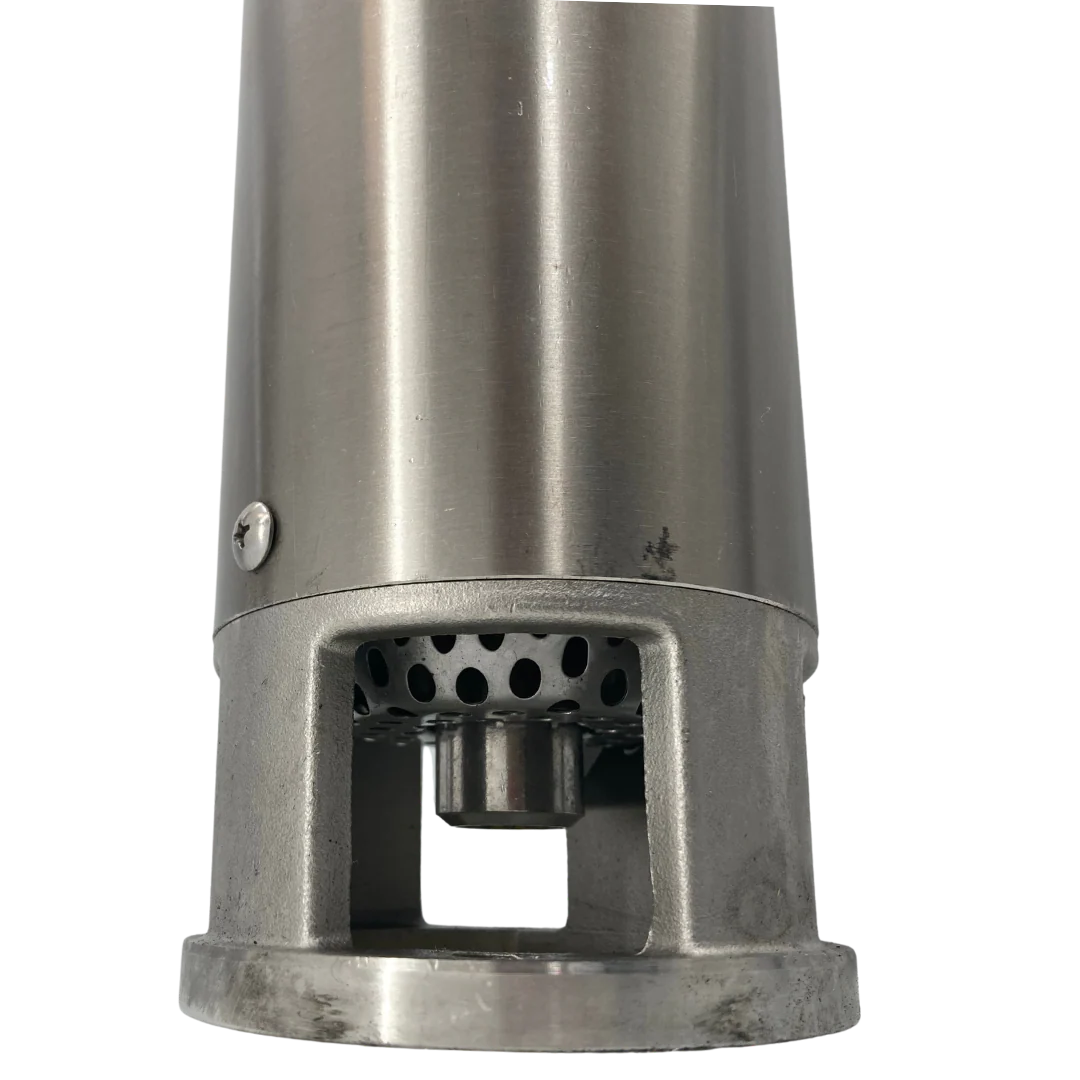

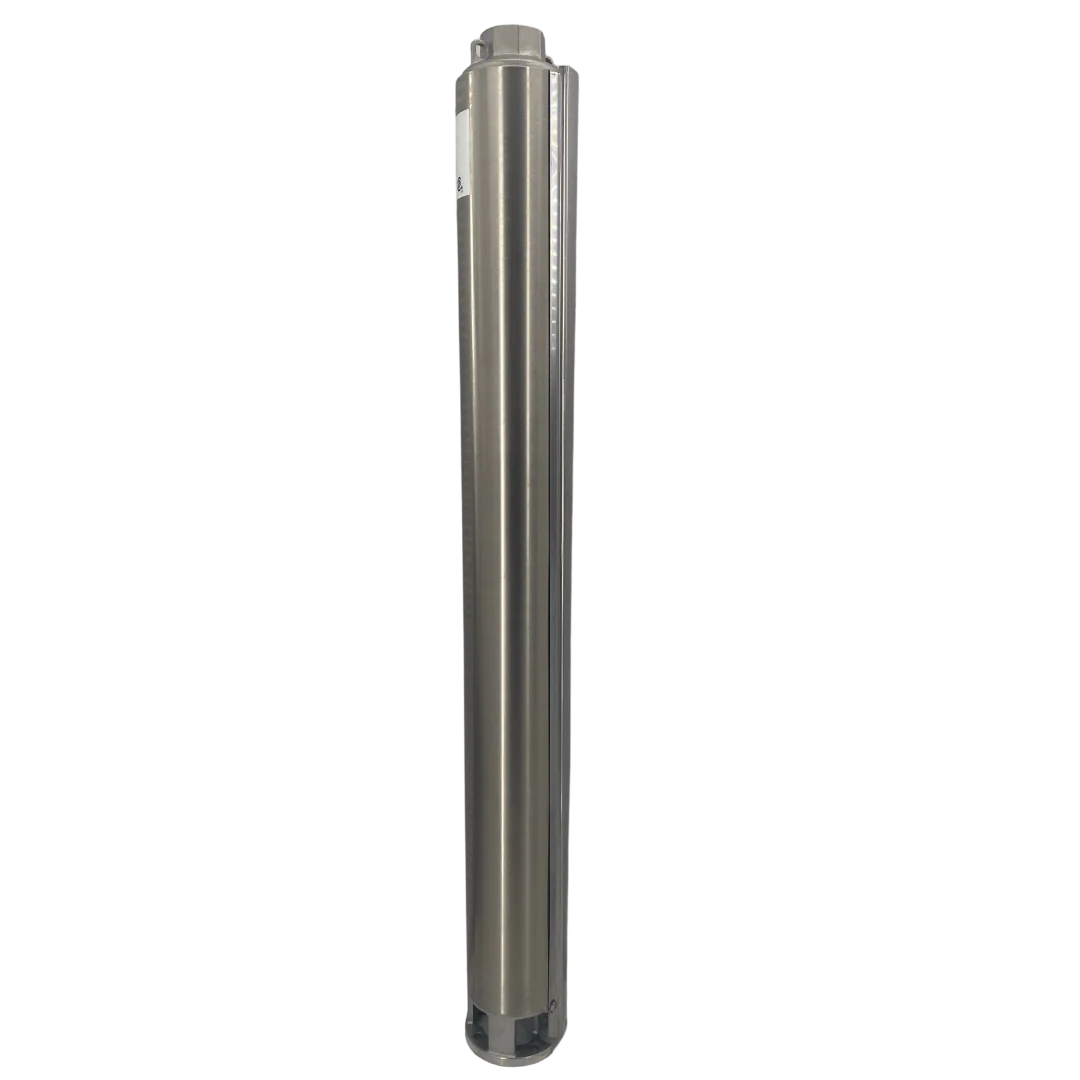

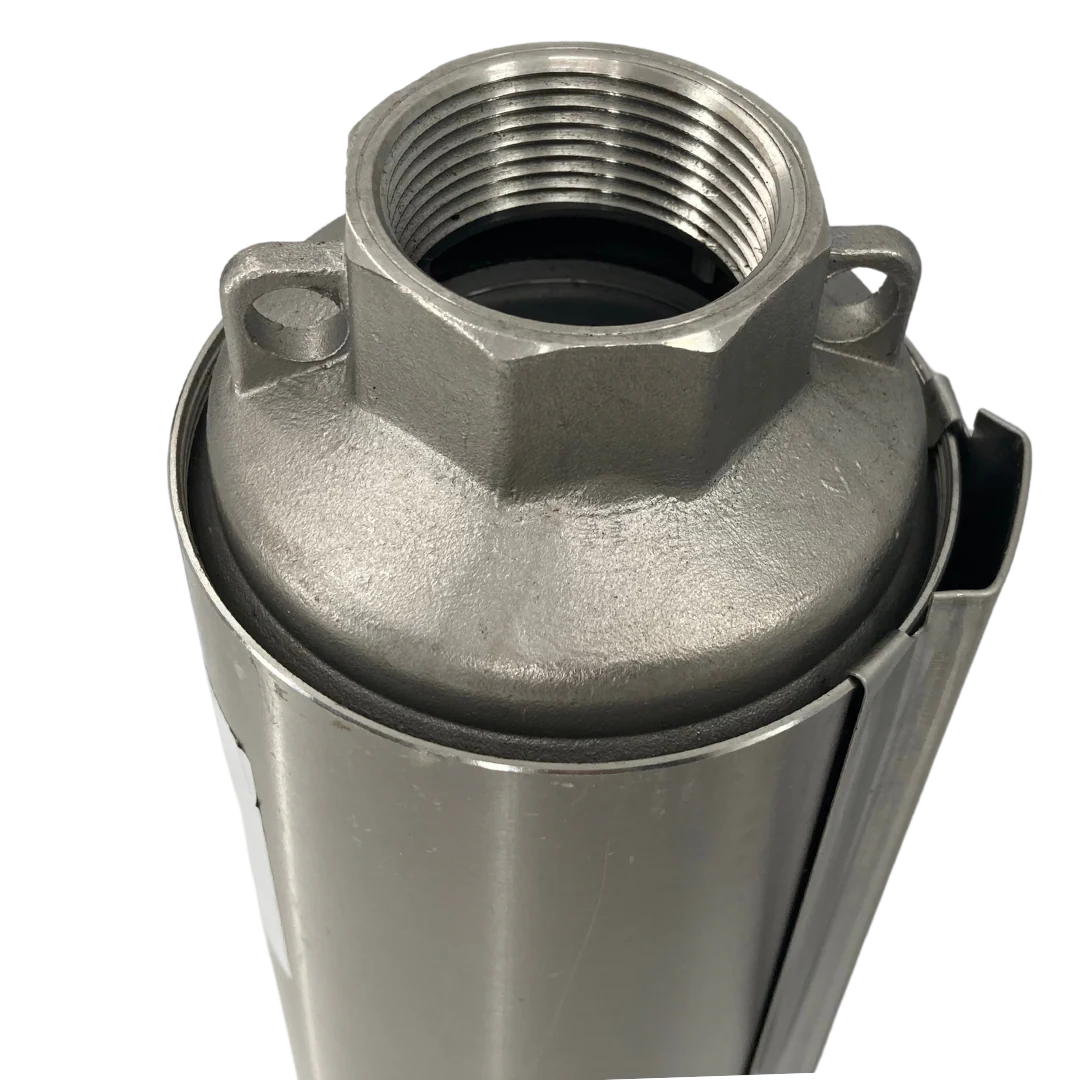

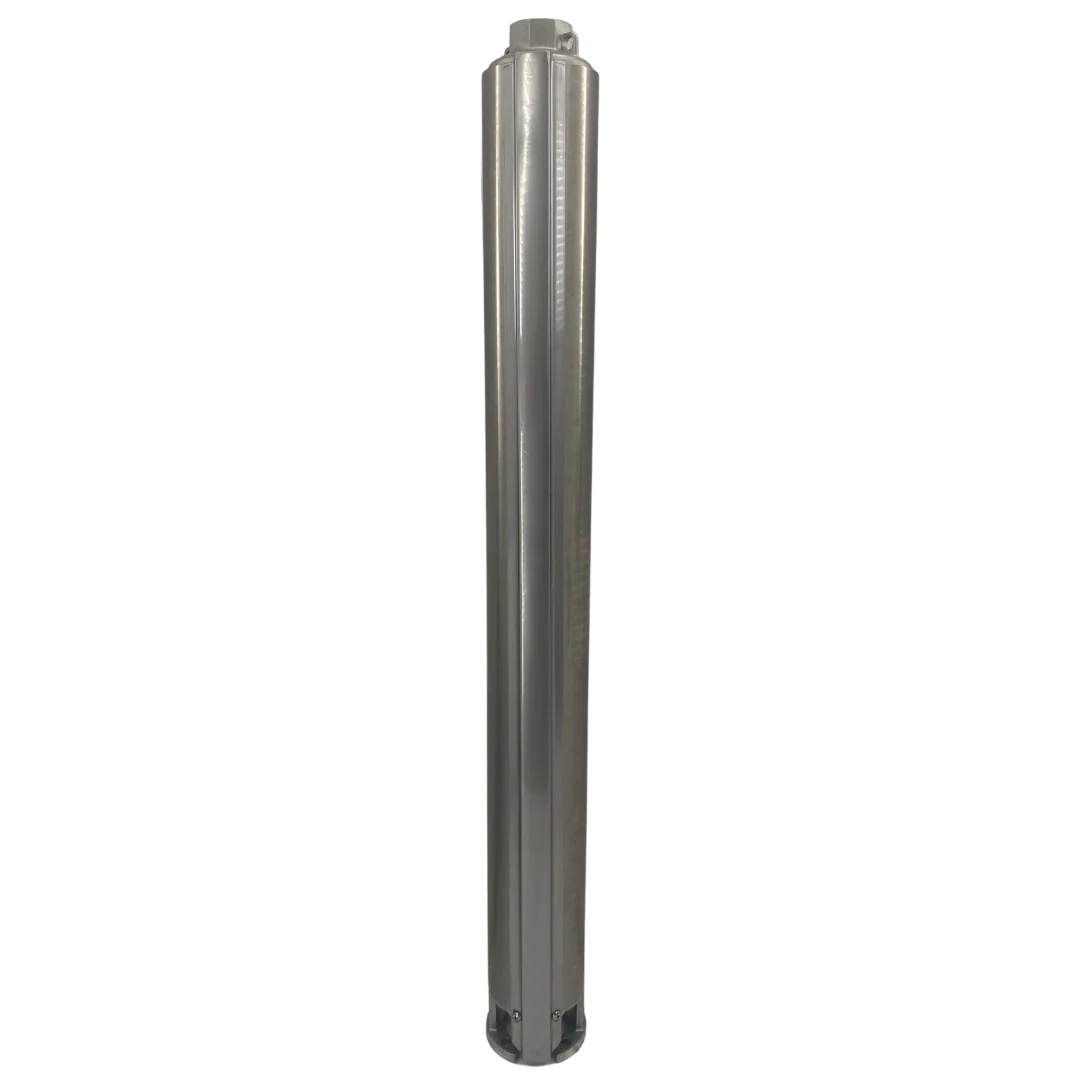

Constructed with a 304 stainless steel outer body and engineered composite impellers, the Core Series gives you serious durability at a price point that makes sense.

NSF Drinking Water Certified and UL Listed — built to the highest standards so the water reaching your family, your livestock, and your crops is clean and safe. No cutting corners where it counts.

Works great pumping from wells, tanks, or ponds. Pairs best with a 5 HP motor end — RPS motor ends are sold separately, available in 110V or 220V. Also fully compatible with motors from Franklin Electric, Goulds, Grundfos, Pentair, and Berkley, so it drops right into your existing setup.

If you're setting up a new well system, replacing a worn-out pump end, or just want something that'll run for years without giving you trouble, the Core Series is where most folks start — and where a lot of them stay.

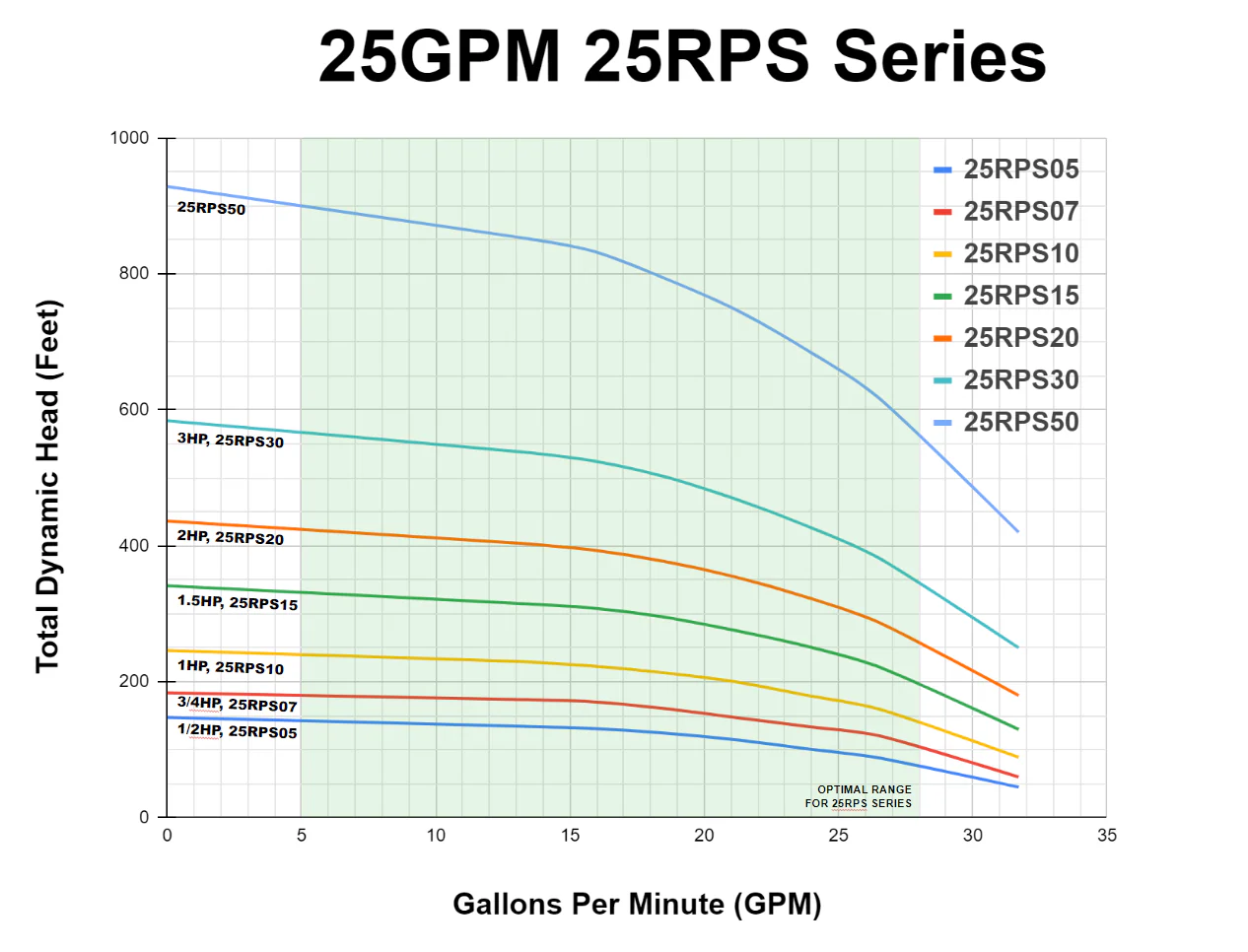

Total Head	Gallons Per Minute (GPM)
No head	31
25 feet	31
50 feet	31
100 feet	31
125 feet	31
150 feet	31
175 feet	31
200 feet	31
250 feet	31
300 feet	31
350 feet	31
400 feet	31
450 feet	31
500 feet	29.5
550 feet	28
600 feet	27
650 feet	25
700 feet	23
750 feet	21
800 feet	18
850 feet	13
Above 850 feet	Size Up for Optimal Performance
