RPS Core Series 5 HP 220V, 3-Wire | 4" Submersible Well Pump + Engineered Impeller | 850 ft Head, 13–31 GPM | 25RPS50 Complete Kit

You're looking at a pump kit that's keeping water flowing across thousands of American farms, ranches, and homesteads.

The RPS Core Series 25RPS50 is a 25 GPM submersible water pump end built for everyday reliability in household wells, agricultural operations, irrigation systems, and even industrial use. Rated up to 850 feet of total head and built for continuous duty, it easily handles the demands that rural water systems require, day in and day out. Pair with a pressure tank - but make sure to size with an RPS Pump Specialist first (855) 560-5670.

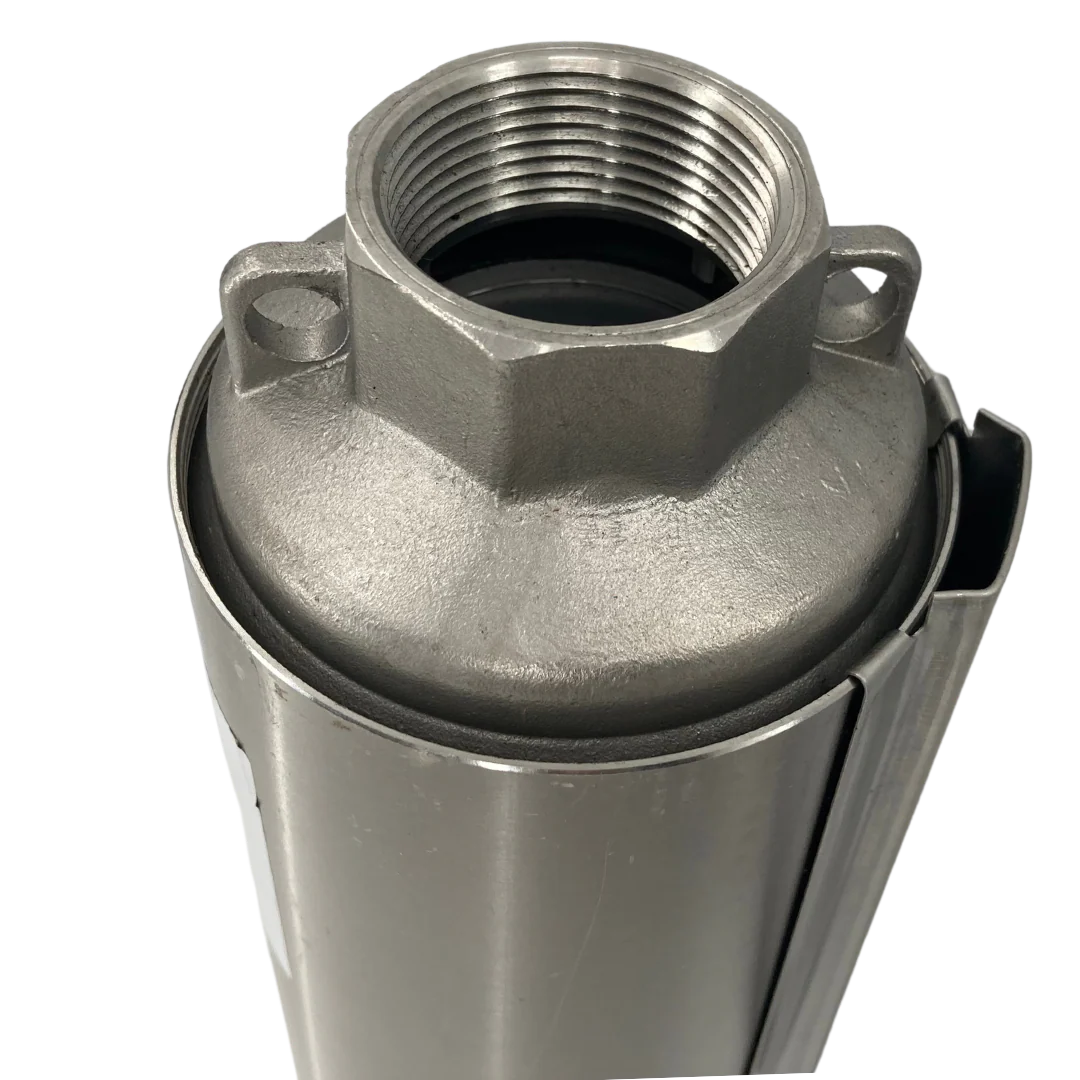

Constructed with a 304 stainless steel outer body and engineered composite impellers, the Core Series gives you serious durability at a price point that makes sense.

NSF Drinking Water Certified and UL Listed — built to the highest standards so the water reaching your family, your livestock, and your crops is clean and safe. No cutting corners where it counts.

Works great pumping from wells, tanks, or ponds. This RPS pump uses a hearty 3 Wire Single Phase 5 HP 220V Motor, a 4" diameter pump end, and a starter box to wire directly to your breaker or switch.

If you're setting up a new well system, replacing a worn-out pump, or just want something that'll run for years without giving you trouble, the Core Series is where most folks start — and where a lot of them stay.

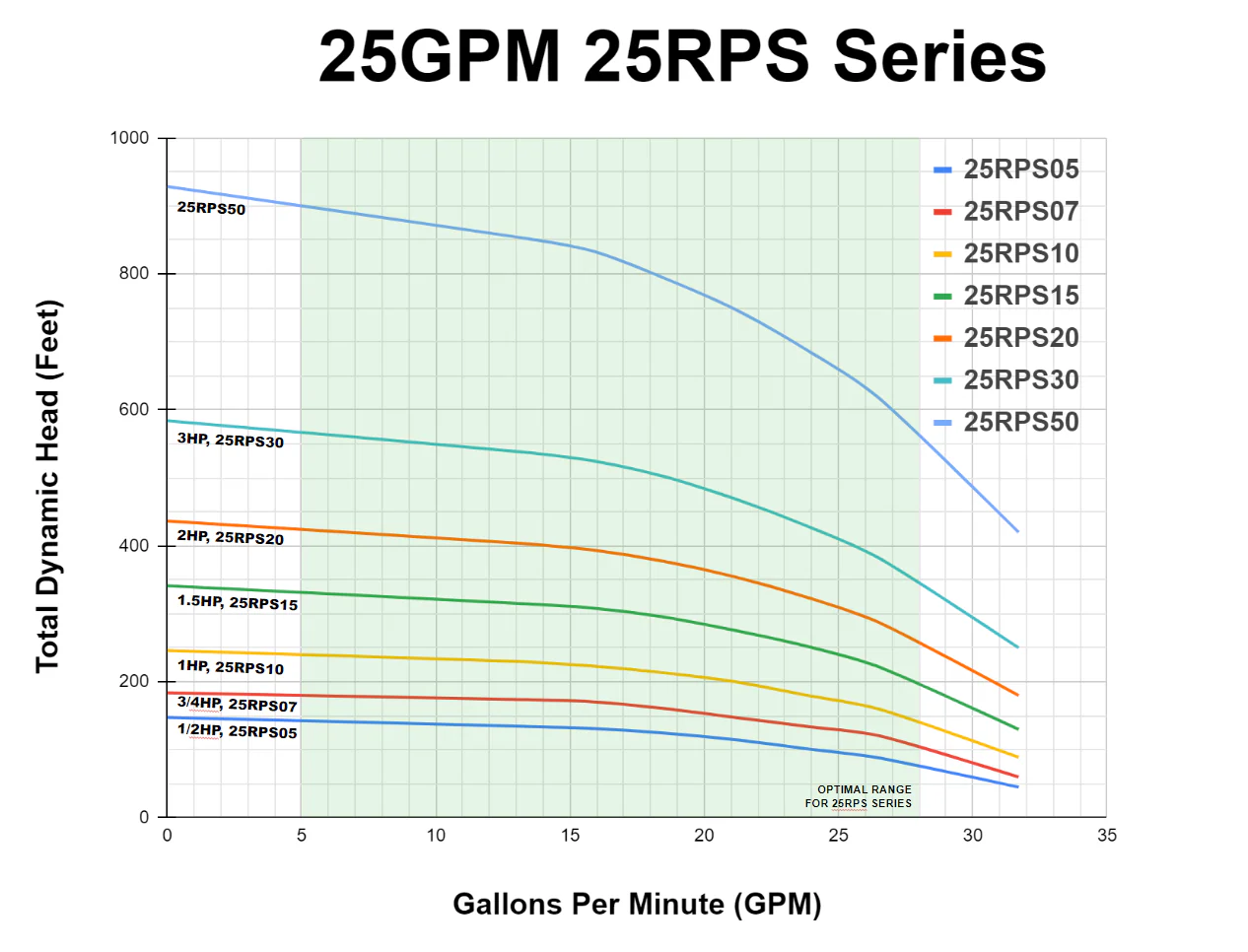

Total Head	Gallons Per Minute (GPM)
No head	31
25 feet	31
50 feet	31
100 feet	31
125 feet	31
150 feet	31
175 feet	31
200 feet	31
250 feet	31
300 feet	31
350 feet	31
400 feet	31
450 feet	31
500 feet	29.5
550 feet	28
600 feet	27
650 feet	25
700 feet	23
750 feet	21
800 feet	18
850 feet	13
Above 850 feet	Size Up for Optimal Performance

Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
