RPS 20HP 480V 150RPS200, Up to 500FT Head, 106 to 211GPM, Stainless Steel Submersible Pump End + Motor
RPS 20HP 480V 150RPS200, Up to 500FT Head, 106 to 211GPM, Stainless Steel Submersible Pump End + Motor
The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Ā
ā Ā NSF Drinking Water and UL Compliant
Includes...

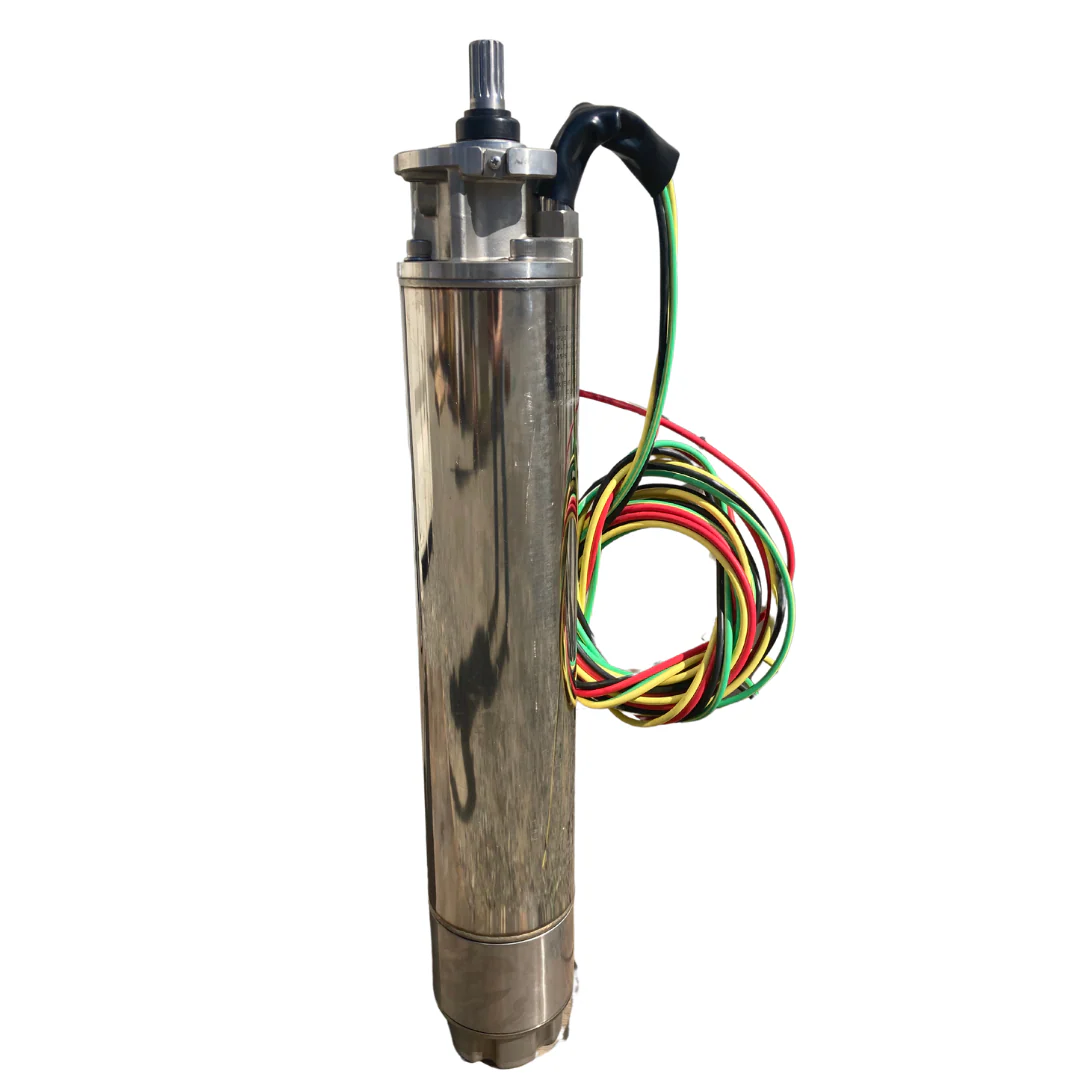

- 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndĀ
- 3" outlet 150RPS200 106-211GPM Pump End, 6" Outside Diameter

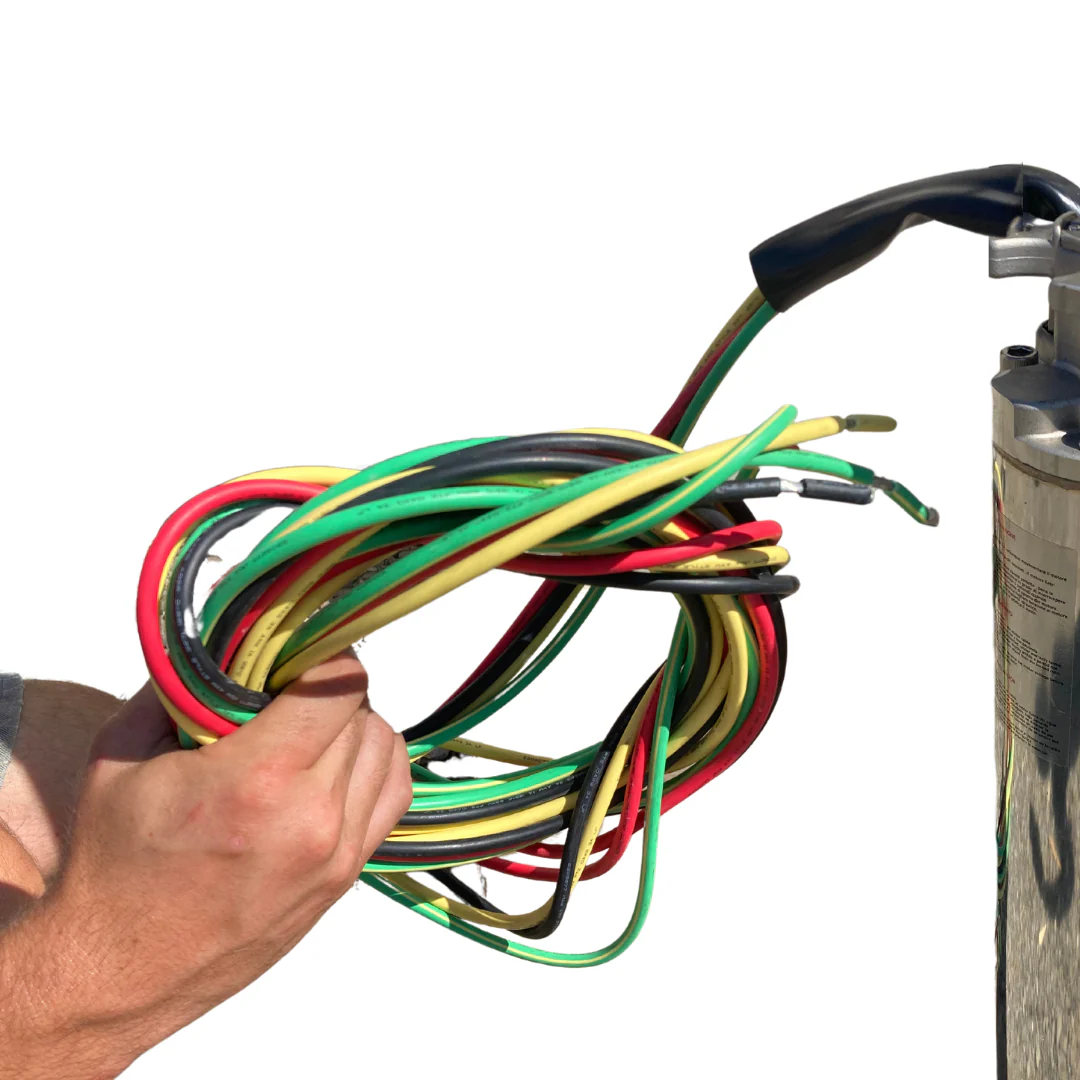

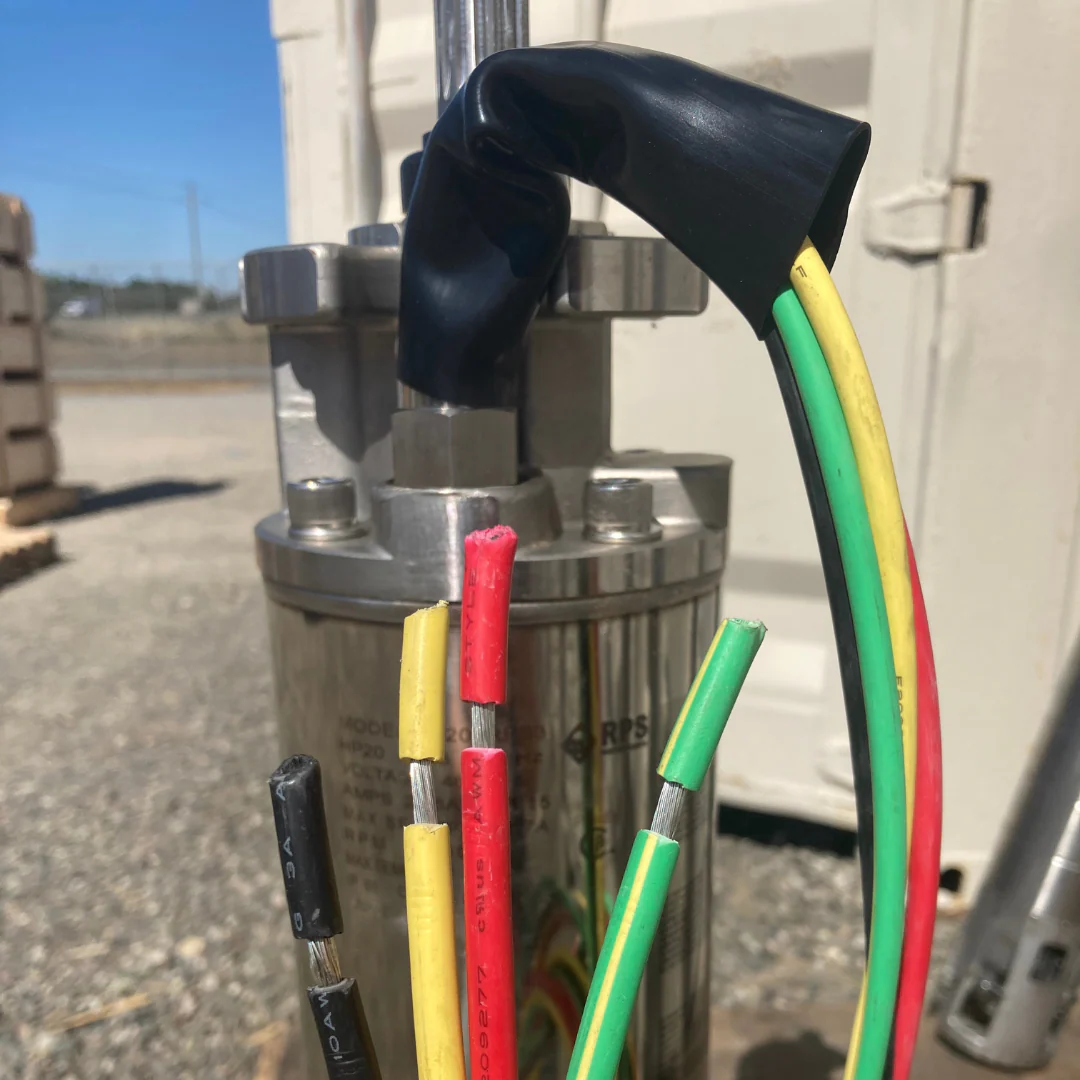

- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorĀ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire.Ā Wires are not pre-crimped.Ā
Customer Supplied Magnetic Starter Box.Ā
| Total Head | Gallons Per Minute (GPM) |
| No head | 211 |
| 25 feet |
211 |
| 50 feetĀ |
211 |
| 75 feet |
211 |
| 100 feetĀ |
211 |
| 125 feetĀ |
211 |
| 150 feetĀ |
211 |
| 175 feetĀ |
211 |
| 200 feetĀ |
211 |
| 225 feet |
211 |
| 250 feet |
211 |
| 275 feet |
211 |
| 300 feet | 204 |
| 325 feet | 196 |
| 350 feet | 189 |
| 375 feet | 178 |
| 400 feet | 169 |
| 425 feet | 157 |
| 450 feet | 145 |
| 475 feet | 124 |
| 500 feetĀ | 106 |
| Above 500 feetĀ | Size UpĀ for Optimal Performance |
