RPS 15HP 480V 400RPS150, Up to 140FT Head, 275 to 528GPM, Stainless Steel Submersible Pump End + Motor
RPS 15HP 480V 400RPS150, Up to 140FT Head, 275 to 528GPM, Stainless Steel Submersible Pump End + Motor
The RPSÂ Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Â
âś…Â NSF Drinking Water and UL Compliant
Includes...

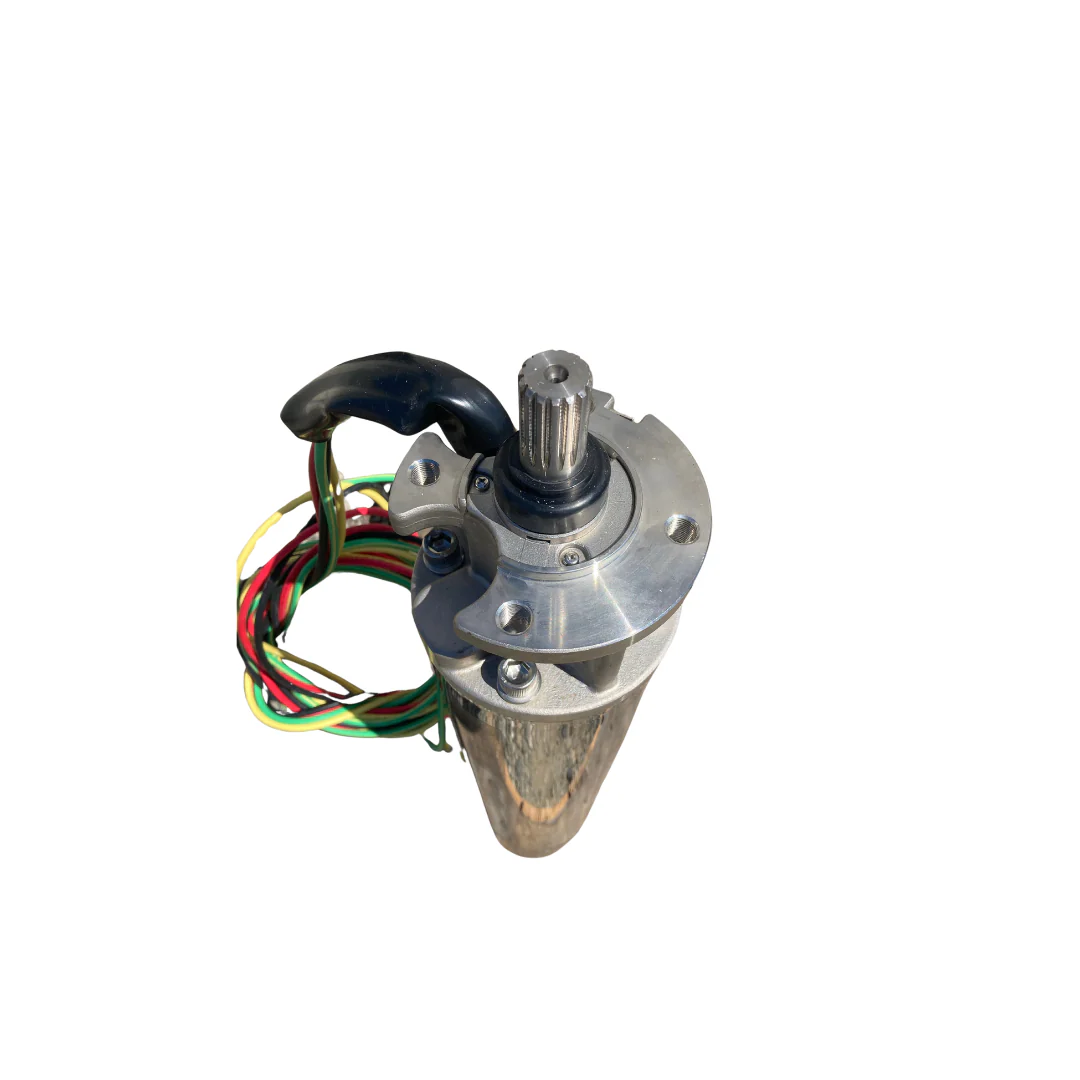

- 15HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndÂ

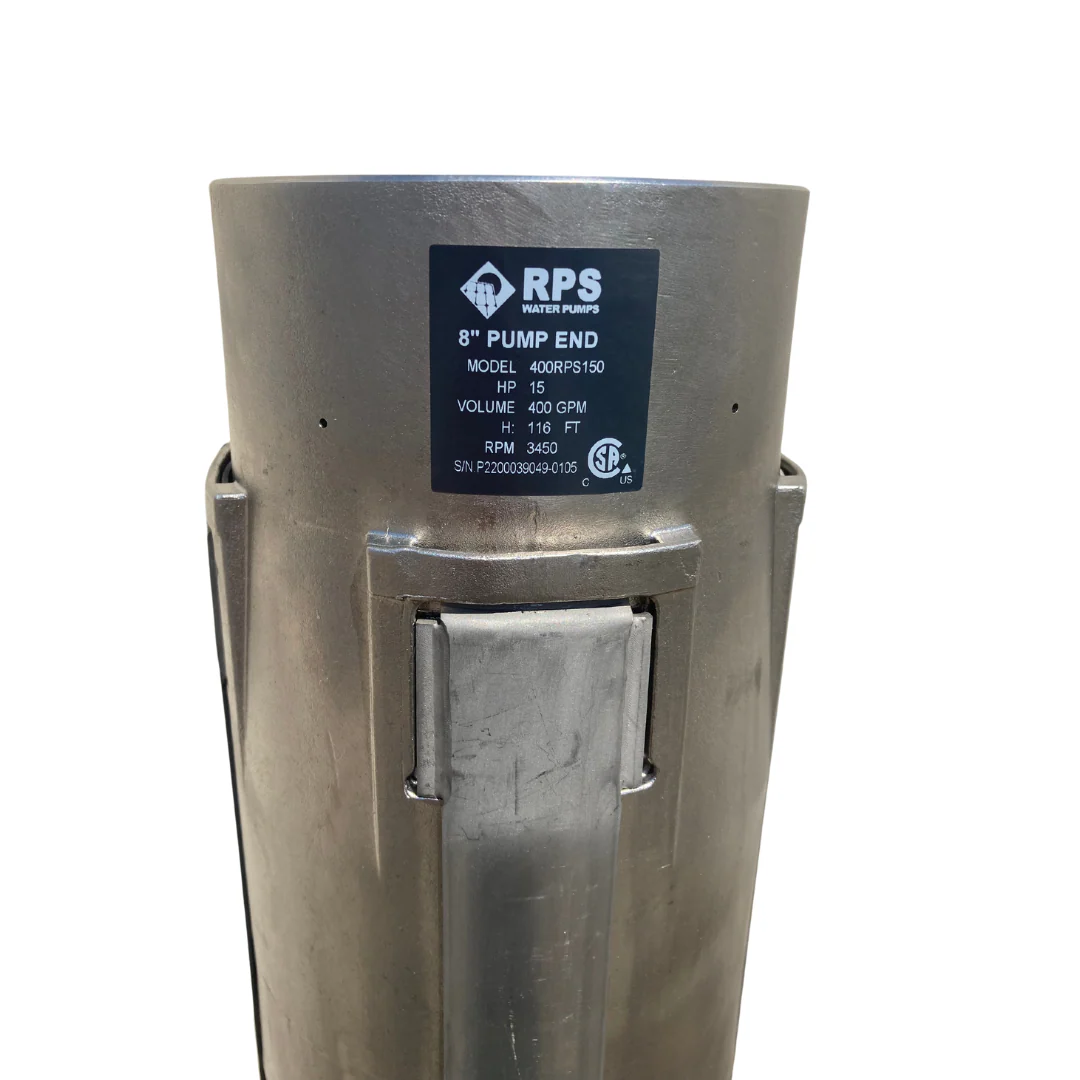

- 5" outlet 400RPS150 275-528GPM Pump End, 8" Outside Diameter

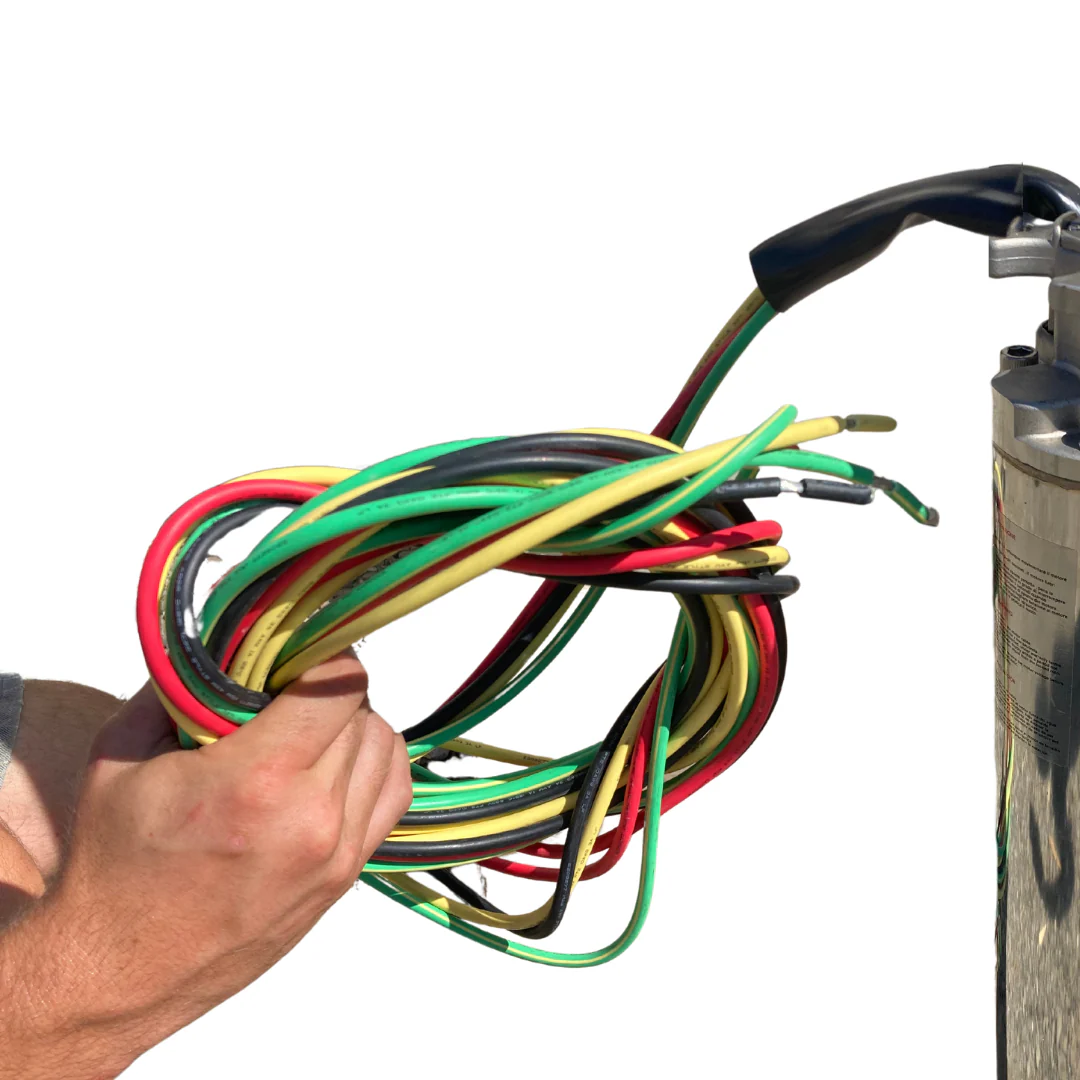

- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorÂ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.Â
Customer Supplied Magnetic Starter Box.Â
| Total Head | Gallons Per Minute (GPM) |
| No head | 528 |
| 10 feet | 528 |
| 20 feet | 528 |
| 30 feet | 528 |
| 40 feet | 528 |
| 50 feet | 528 |
| 60 feet | 528 |
| 70 feet | 528 |
| 80 feet | 510 |
| 90 feet | 482 |
| 100 feet | 453 |
| 110 feet | 419 |
| 120 feet | 370 |
| 130 feet | 317 |
| 140 feet | 274 |
| Above 140 feet | Size Up for Optimal Performance |
 Â
