RPS 10HP 480V 150RPS100, Up to 225FT Head, 113 to 211GPM, Stainless Steel Submersible Pump End + Motor
RPS 10HP 480V 150RPS100, Up to 225FT Head, 113 to 211GPM, Stainless Steel Submersible Pump End + Motor
The RPSĀ Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.Ā
ā Ā NSF Drinking Water and UL Compliant
Includes...

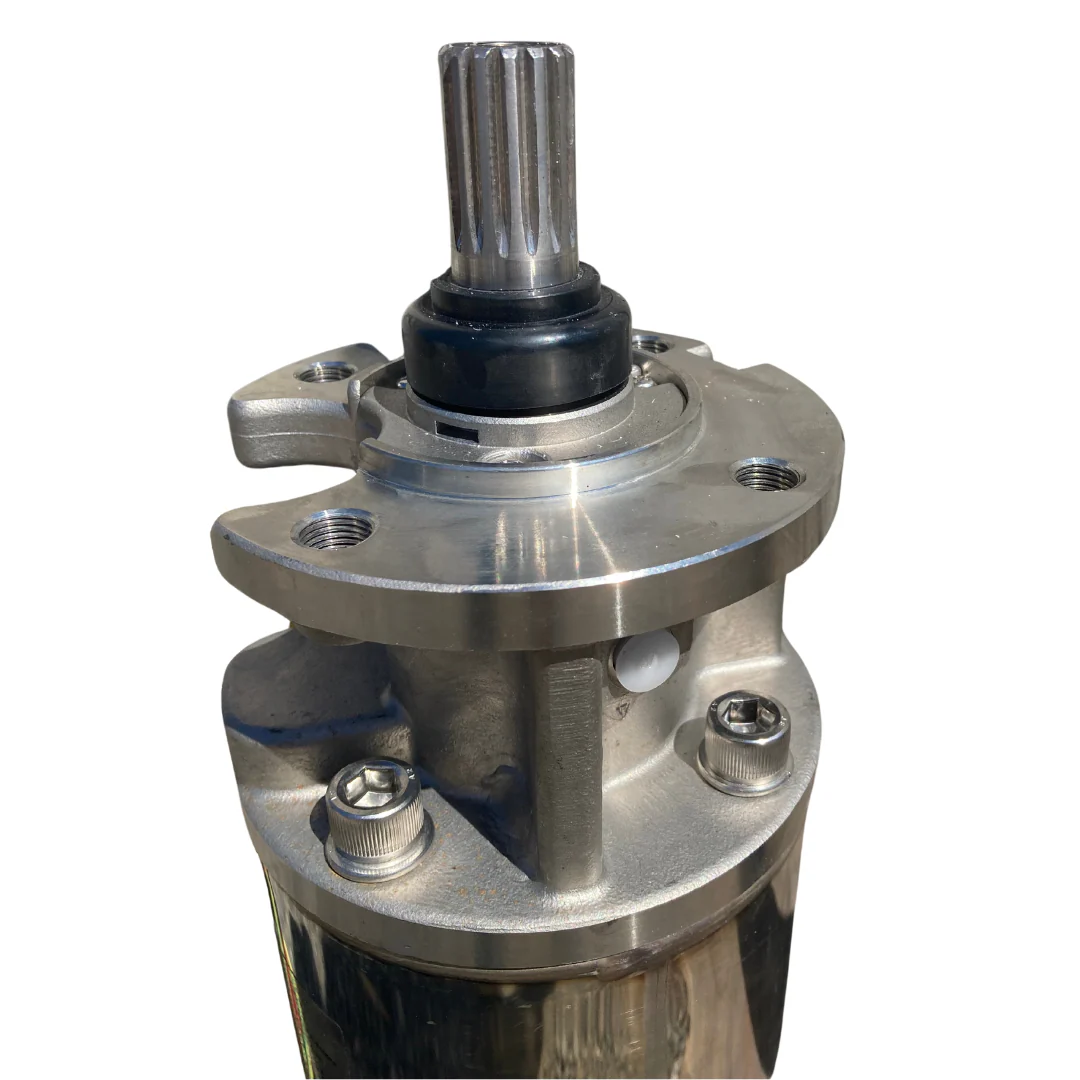

- 10HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor EndĀ
- 3" outlet 150RPS100 113-211GPM Pump End, 6" Outside Diameter
- 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motorĀ
- Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.
Customer Supplied Magnetic Starter Box.Ā
| Total Head | Gallons Per Minute (GPM) |
| No head | 211 |
| 100 feet | 211 |
| 125 feetĀ | 204 |
| 150 feet | 189 |
| 175 feetĀ | 170 |
| 200 feetĀ | 145 |
| 225 feetĀ | 113 |
| Above 225 feetĀ | Size UpĀ for Optimal Performance |
Ā Ā
