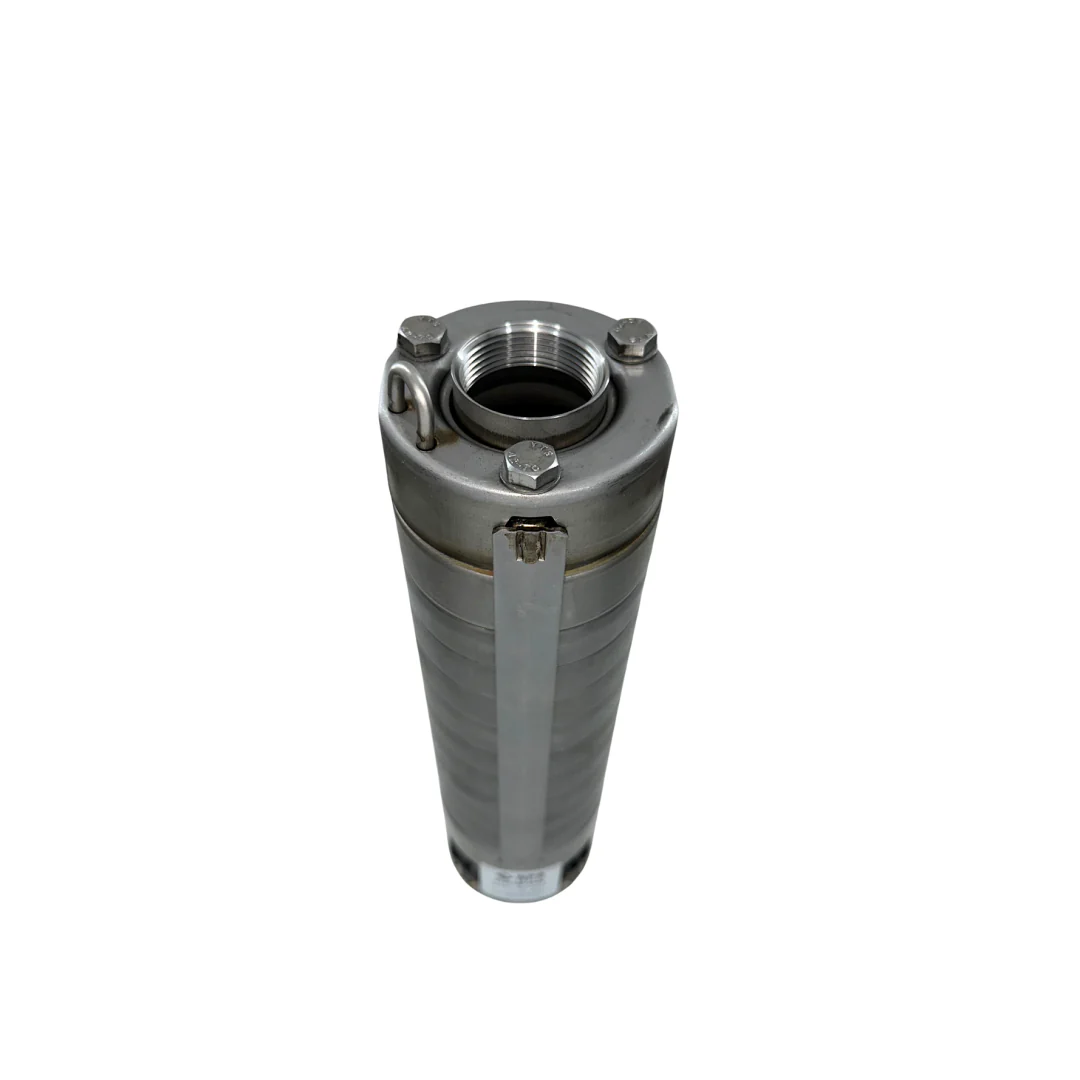

RPS Steel Pro 05RPS05-S 4" Submersible Pump End | Stainless Steel Impeller | 5-6.6 GPM
The RPS Steel Pro 05RPS05-S subermsible water pump brings full 304 stainless steel construction — outer body and impellers — to a price point that everyday families and working operations can actually afford. That used to be an industrial luxury. Not anymore.
Why does stainless steel impeller material matter? Because your well water isn't just water. Sand, dissolved minerals and hard water deposits can all take a toll on components over time. Steel impellers are the best at resisting abrasion and shruging off mineral buildup— meaning more consistent flow, less efficiency loss, and fewer surprise failures at the worst possible moments.
The 05RPS05-S delivers 5-6.6 GPM with up to 250 feet of total head — built for residential wells, ranch water systems, farm irrigation, and industrial applications where you can't afford downtime. It's also the go-to upgrade for sandy wells. Pair with a pressure tank - but make sure to size with an RPS Pump Specilaist first (855) 560-5670.
NSF Drinking Water Certified and UL Listed — built to the highest standards so the water reaching your family, your livestock, and your crops is clean and safe. No cutting corners where it counts.
Built for wells, tanks, and ponds. Pairs best with a 1/2 HP motor end — RPS motor ends sold separately in 110V or 220V. Fully compatible with motors from Franklin Electric, Goulds, Grundfos, Pentair, and Berkley, so swapping it into your current system is straightforward.

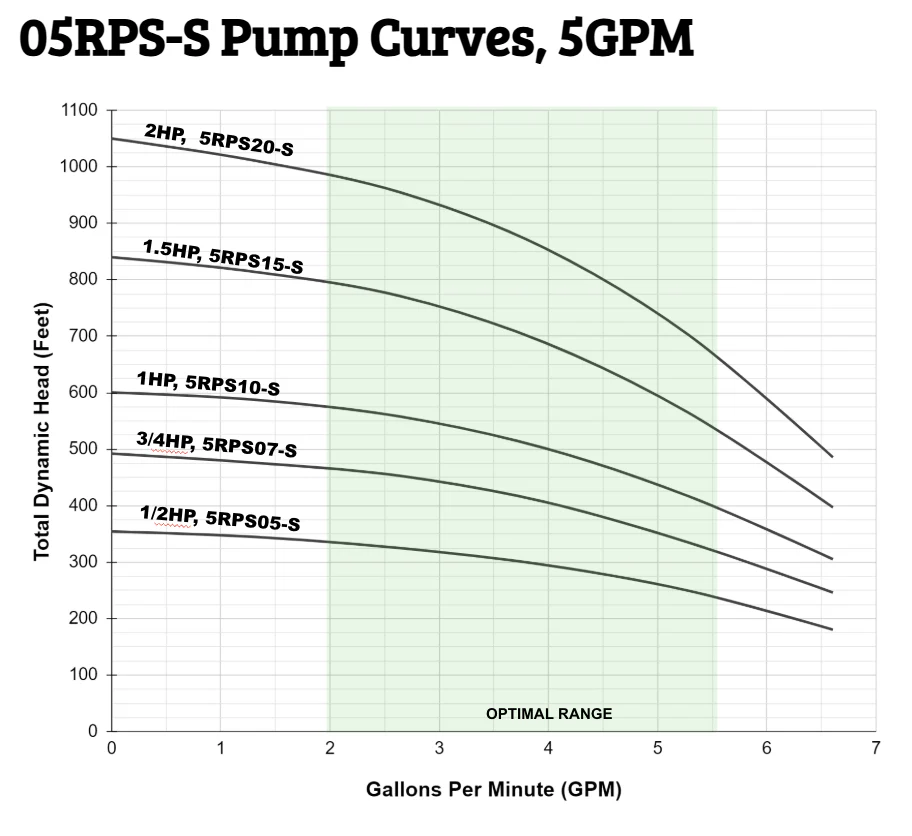

| Total Head | Gallons Per Minute (GPM) |
| No head | 6.6 |
| 50 feet | 6.6 |
| 100 feet | 6.6 |
| 150 feet | 6.6 |
| 200 feet | 6 |
| 250 feet | 5.3 |
| Above 250 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 05RPS Series Models!
Original: $579.99
-65%$579.99
$203.00More Images
RPS Steel Pro 05RPS05-S 4" Submersible Pump End | Stainless Steel Impeller | 5-6.6 GPM
The RPS Steel Pro 05RPS05-S subermsible water pump brings full 304 stainless steel construction — outer body and impellers — to a price point that everyday families and working operations can actually afford. That used to be an industrial luxury. Not anymore.
Why does stainless steel impeller material matter? Because your well water isn't just water. Sand, dissolved minerals and hard water deposits can all take a toll on components over time. Steel impellers are the best at resisting abrasion and shruging off mineral buildup— meaning more consistent flow, less efficiency loss, and fewer surprise failures at the worst possible moments.
The 05RPS05-S delivers 5-6.6 GPM with up to 250 feet of total head — built for residential wells, ranch water systems, farm irrigation, and industrial applications where you can't afford downtime. It's also the go-to upgrade for sandy wells. Pair with a pressure tank - but make sure to size with an RPS Pump Specilaist first (855) 560-5670.
NSF Drinking Water Certified and UL Listed — built to the highest standards so the water reaching your family, your livestock, and your crops is clean and safe. No cutting corners where it counts.
Built for wells, tanks, and ponds. Pairs best with a 1/2 HP motor end — RPS motor ends sold separately in 110V or 220V. Fully compatible with motors from Franklin Electric, Goulds, Grundfos, Pentair, and Berkley, so swapping it into your current system is straightforward.
| Total Head | Gallons Per Minute (GPM) |
| No head | 6.6 |
| 50 feet | 6.6 |
| 100 feet | 6.6 |
| 150 feet | 6.6 |
| 200 feet | 6 |
| 250 feet | 5.3 |
| Above 250 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 05RPS Series Models!
